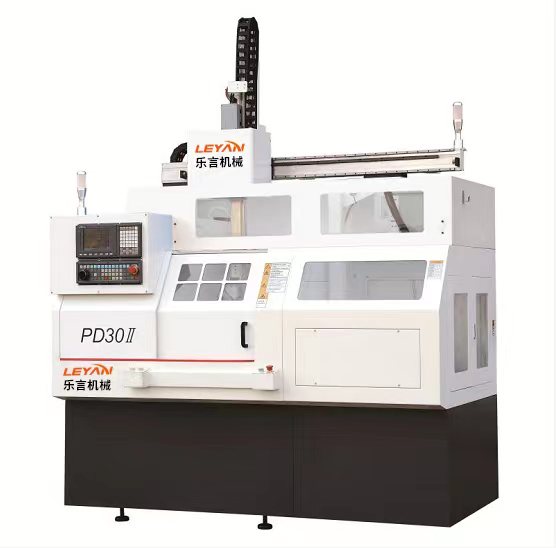

CNC lathe PD30 Machine tool accessories

  • CNC lathe PD30 Machine tool accessories
  • CNC lathe PD30 Machine tool accessories
  • CNC lathe PD30 Machine tool accessories
  • CNC lathe PD30 Machine tool accessories

CNC lathe PD30 Machine tool accessories

    Unit Price: 25000~26000 USD
    Min. Order: 1 Set/Sets
    Packaging: The wooden case
    Brand: LEYAN
    Transportation: Ocean
    Place of Origin: NINGBO
    Port: NING BO,SHANG HAI,ZHOU SHAN

Basic Info

Model No.: PD30 Machine tool accessories

Product Description

CNC lathe PD30 Machine Tool Accessories

Numerical control system. Using Japan FANUC system, high stability, high precision.
● High precision spindle. USES the advanced structure of motorized spindle, spindle bearing adopts Japan NSK high precision angular contact ball bearing, ensure the accuracy of the spindle high rigidity and lasting stability, main shaft runout & le; 2 & mu; M.
● Efficient processing. Highest spindle speed 6000 r/min, x, z axis is fast moving speed can be up to 24 m/min.
● High rigid bed. Stable structure design, high quality baking the whole cast iron bed, strong rigidity.
● High precision of feed. Feed full servo drive shafts, adopt NSK, Japan THK high-precision ball screw, Japan NSK bearings, ball screws to ensure machining accuracy and the precision of the long time maintain, feed the repositioning precision shaft & le; 2 & mu; M.
● Big schedule knife rest. Large schedule dao head structure, digits, repeated error is minimum in the knife, tool change high-speed accurate, can substantially save processing time.
Machine Tool guideway structure. Machine tool guideway adopt NSK, Japan THK, high precision linear guide, automatic lubrication system configuration Set river valley, ensure the axis high speed feed for a long time.
● Automation. Can be customized different automatic feeding device to realize automation of processing.


Cnc Lathe pd30

Technical Parameter

Maximum turning diameter of bed

Ф240 mm

Turning diameter X axis mesa

Ф120 mm

The largest processing bar diameter

Ф30 mm

Maximum processing length

100 mm

The highest speed

6000 r/min

The spindle control mode

Frequency conversion stepless speed regulation

The spindle the hole diameter

Ф36 mm

Built-in spindle motor

3.7Kw

X, Z axis is fast moving speed

24m/min

The X axis stroke

320mm

The Z axis stroke

180mm

X axis of the torque

4N.m

Z axis of the torque

4N.m

Car handle size

□16mmX16mm

The spindle to beat

≤0.002mm

Repeat positioning accuracy

≤0.002mm

Machine weight

1400kg

Machine tool overall dimensions (length x width x height)

1240x1350x1580mm


Main parts brand:

Product Brand place of origin
Numerical control system FANUC Japan
Spindle configuration Motorized spindle Taiwan
Spindle driver FANUC Japan
servomotor FANUC Japan
Servo driver FANUC Japan
Spindle bearing NSK (or NTN, P4 level) Japan
Lead screw THK Japan
Guide rail THK Japan
Lead rod bearing NSK (or NACHI) Japan
coupling KTR Germany
Spindle, screw lock nut YIN XI Taiwan
Main electrical components Schneider FRANCE
Pneumatic element AIRTAC Taiwan
Lubrication system Rihua valley Japan
Spindle encoder FANUC Japan
Chuck and cylinder PMT Japan
